飞思发布中画幅蓝圈变焦40-80/4-5.6和75-150/4-5.6 (2016.7.18)
123 2
[1 楼] hoq [资深泡菜]
16-7-19 14:27
北京时间18日晚间,飞思公司正式发布两款Schneider Kreuznach蓝圈系列变焦中画幅镜头,其中包括了一只40-80mm LS镜头和一只75-150mm LS镜头。两枚镜头均为XF中画幅系统设计,支持自动对焦,并配备了变焦锁定功能,支持1/1600s闪光同步率,40-80mm LS售价为8,990美元(约59,645元人民币),并将于8月1日上市销售;而75-150mm LS的价格则是5,990美元(约40,143元人民币),目前已经上市。预计8月份开始出货。

都是镜间快门。不带防抖的样子。

Schneider Kreuznach 40-80mm LS镜头规格:

  镜头结构:15片11组

  最近对焦距离:0.6m

  最大放大倍率:0.179x

  滤镜尺寸:105mm

  镜头尺寸:300 x 230mm

         镜头重量:1860g
  Schneider Kreuznach 75-150mm LS镜头规格:

  镜头结构:11片10组

  最近对焦距离:1m

  最大放大倍率:0.164x

  滤镜尺寸:95mm

  镜头尺寸:341 x 253mm
[3 楼] hoq [资深泡菜]
16-7-19 14:31

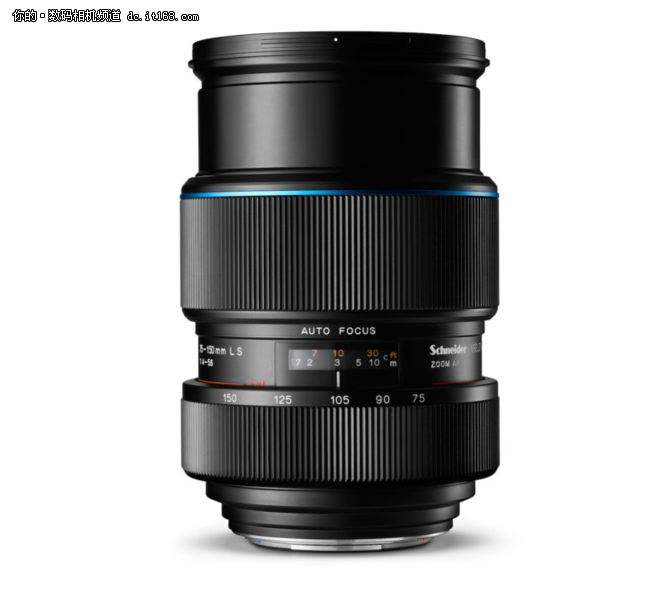

75-150 更多信息

The Schneider Kreuznach 75-150mm LS Zoom is maybe the most all-round and versatile Normal/Tele lens for the XF camera system.
In combination with the Schneider Kreuznach 40-80mm LS f/4.0-5.6 Zoom, the focal length range is complete, from 40mm to 150mm with only two lenses.
- Preferred lens for location fashion photography at all focal lengths.
- Flash synchronization up to 1/1600th
- f4/5.6 – f45
- Practically no focus shift during zoom
- Zoom lock function on barrel
Specifications

    Optical Construction11 elements /10 groups
    Angle of viewW)50° - T)26°
    Aperture rangeW)f/4 – f/22 T)f5.6-f45
    DiaphragmAutomatic
    Focusing SystemAuto Focus / Manual
    Minimum Focusing Distance3.28 ft. / 1.00 m
    Maximum Magnification RatioW)0.09x, T)0.164x
    Area CoveredW)636 x 472, T)341 x 253 [mm]
    Equivalent 35mm Focal LengthW)47 mm, T)93 mm
    Filter95mm
    Lens HoodBayonet
    Dimension172 x 105.5mm / 6.8 x 4.2”
    Weight1800g / 3.96 lb / 63.49 oz.
[2 楼] hoq [资深泡菜]
16-7-19 14:30

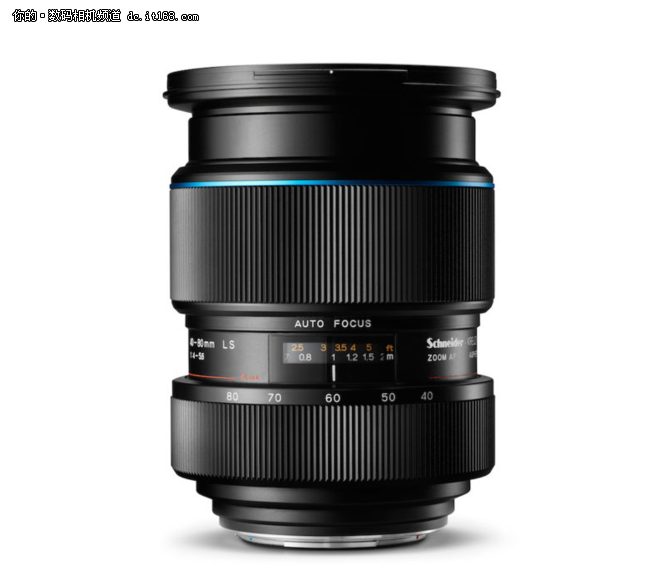

40-80更多信息

Schneider Kreuznach 40-80mm LS f/4.0-5.6 Zoom lens performs with ultra sharp rendition on all focal lengths. The optical quality of this zoom lens is comparable with what you would expect from a genuine prime lens.
In combination with the Schneider Kreuznach 75-150mm LS f/4.0-5.6 Zoom, the focal length range is complete, from 40mm to 150mm with only two lenses.
- Prime lens quality on full zoom range
- Preferred lens for location shoots from wide to normal focal length
- Flash synchronization up to 1/1600th
- f4/5.6 – f45
- Practically no focus shift during zoom
- Zoom lock function on barrel
Specifications

    Optical Construction15 elements /11 groups
    Angle of viewW)82° - T)47°
    Aperture rangeW)f/4 – f/32, T)f/5.6 - f/45
    DiaphragmAutomatic
    Focusing SystemAuto Focus / Manual
    Minimum Focusing Distance1.97 ft. / 0.60 m
    Maximum Magnification RatioW)0.094x, T)0.179x
    Area CoveredW)560 x 420, T)300 x 230 [mm]
    Equivalent 35mm Focal LengthW)25mm, T)50mm
    Filter105mm
    Lens HoodBayonet
    Dimension5.90 x 4.40 " / 150 x 111 mm
    Weight4.1 lbs. / 1860 g / 65.60 oz.
